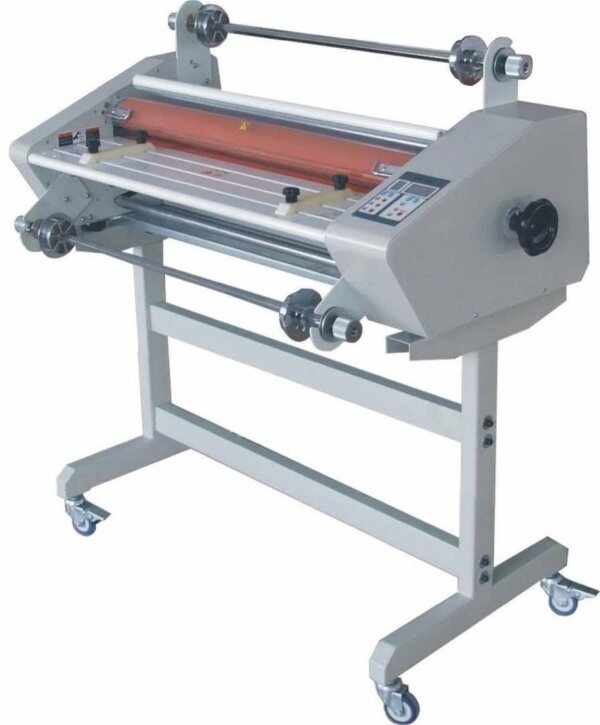

Hot & Cold Industrial A2 Laminating Machine

Lamination is the process of applying a protective layer over printed materials to enhance durability and appearance. Common types include gloss (shiny finish), matte (non-reflective), silk (smooth, soft touch), and velvet (luxurious texture). Others include thermal, cold, and UV lamination, each serving specific protective or aesthetic purposes.

The Hot & Cold Industrial A2 Laminating Machine is a high-performance laminator designed for commercial and professional use. Capable of handling both hot and cold lamination, it accommodates A2-sized sheets and smaller formats such as A3, A4 with ease. This machine is ideal for lamination shops, print service providers, schools, and offices needing fast, reliable protection for documents, posters, menus, certificates, and more.

Equipped with a strong roller system, adjustable temperature settings, and overheat protection, this laminator ensures smooth, bubble-free finishes every time. It has durable steel housing, metal stand and stable operation, making it perfect for continuous use in demanding environments.

Product Specifications

• Max Lamination Size – A2 (420mm x 594mm)
• Lamination Type – Hot & Cold
• Max Laminating Thickness – Up to 250 microns
• Speed – Up to 600mm/min
• Roller System – 4-Roller
• Warm-Up Time – 3–5 minutes
• Temperature Control – Adjustable 100–180°C
• Power Supply – 220V / 50Hz
• Body Material – Heavy-duty steel
• Dimensions – 58 x 35 x 22 cm
• Weight – 22 kg

Installation Instructions:

• Unbox; remove transit locks/foam; confirm accessories (stand, infeed/outfeed tables, core adapters, take-up, tool kit).
• Assemble and level the floor stand (or place on a rigid table with ≥20–30 cm rear clearance).
• Check rating label; connect to a surge-protected 220–240 V outlet (power OFF).
• Fit infeed/outfeed tables; square them to the rollers.
• Clean silicone rollers (lint-free cloth + approved cleaner).
• Load film rolls on top/bottom shafts (use 1″/3″ core adapters); center and lock collars.
• Thread film path with a leader board; close the nip; set light brake/tension.
• Zero the nip gap; set even roller pressure across the width.
• Power ON; select HOT/COLD; set temperature & speed for film thickness (e.g., 75–250 mic).
• Wait for READY/stable temp; run a scrap test and fine-tune temp/speed/tension (decurl bar if equipped).
• Installation support available on request.

Shipping & Delivery Information:

• Ships within 7–10 business days across Africa.
• Protective crating; includes stand/assembly kit.
• Nationwide & international delivery available.
